要約

Bamboo may display an error message: "Could not obtain issue details from JIRA". This could be caused by a broken application link from Bamboo to Jira, or invalid characters sent from Jira. This article provides insights on how to prevent this issue and offers solutions for handling such reasons.

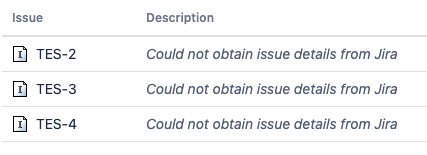

Below is a screenshot of the sample issue:

環境

• Bamboo server version: 9.0.1
• JIRA version: 8.20.15

Note: While this issue has been observed specifically on these versions, it may also occur in other versions of Bamboo and JIRA.

診断

Broken application link symptoms:

Error logs from Bamboo:

2023-07-19 02:02:35,591 INFO [NavLink RestCapabilitiesClient:thread-1] [RestCapabilitiesClient] Failed to request capabilities from '<jira-instance>/rest/capabilities': status code: 503
2023-07-19 02:03:15,608 INFO [NavLink RestCapabilitiesClient:thread-1] [RestCapabilitiesClient] Failed to request capabilities from '<jira-instance>/rest/capabilities': status code: 503
2023-07-19 02:04:28,559 INFO [NavLink RestCapabilitiesClient:thread-1] [RestCapabilitiesClient] Failed to request capabilities from '<jira-instance>/rest/capabilities': Read timed out

Error logs from Jira:

2023-07-10 22:25:59,002 INFO [NavLink RestCapabilitiesClient:thread-1] [RestCapabilitiesClient] Failed to request capabilities from '<Bamboo-instance>/rest/capabilities': Connect to <Bamboo-instance> [/<Bamboo-instance>] failed: connect timed out

Invalid characters link symptoms:

1. The Bamboo interface shows "Could not obtain issue details from JIRA" in Jira issues section of the Build summary.

2. Error found inside <bamboo-install>/logs/catalina.out:

   07-Jun-2023 15:46:20.172 WARNING [Catalina-utility-1] org.apache.catalina.valves.StuckThreadDetectionValve.notifyStuckThreadCompleted Thread [http-nio-9085-exec-8] (id=[541]) was previously reported to be stuck but has completed. It was active for approximately [98,786] milliseconds.
   07-Jun-2023 15:46:41.860 INFO [http-nio-8085-exec-50959] org.apache.coyote.http11.Http11Processor.service Error parsing HTTP request header
    Note: further occurrences of HTTP request parsing errors will be logged at DEBUG level.
   	java.lang.IllegalArgumentException: Invalid character found in the request target [/rest/api/latest/result/DEVOPS-BATCHAPP0/12?expand=JiraIssues\ ]. The valid characters are defined in RFC 7230 and RFC 3986
   		at org.apache.coyote.http11.Http11InputBuffer.parseRequestLine(Http11InputBuffer.java:494)
   		at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:271)
   		at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:65)
   		at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:890)
   		at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1789)
   		at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:49)
   		at org.apache.tomcat.util.threads.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1191)
   		at org.apache.tomcat.util.threads.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:659)
   		at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
   		at java.lang.Thread.run(Thread.java:748)

3. Error found in <bamboo-home>/logs/atlassian-bamboo.log

   Caused by: org.xml.sax.SAXParseException: An invalid XML character (Unicode: 0x8) was found in the value of attribute "name" and element is "entity".
   	at org.apache.xerces.util.ErrorHandlerWrapper.createSAXParseException(Unknown Source) ~[xercesImpl-2.12.2.jar:?]
   	at org.apache.xerces.util.ErrorHandlerWrapper.fatalError(Unknown Source) ~[xercesImpl-2.12.2.jar:?]
   	at org.apache.xerces.impl.XMLErrorReporter.reportError(Unknown Source) ~[xercesImpl-2.12.2.jar:2.12.2]
   	at org.apache.xerces.impl.XMLErrorReporter.reportError(Unknown Source) ~[xercesImpl-2.12.2.jar:2.12.2]
   	at org.apache.xerces.impl.XMLErrorReporter.reportError(Unknown Source) ~[xercesImpl-2.12.2.jar:2.12.2]
   	at org.apache.xerces.impl.XMLScanner.reportFatalError(Unknown Source) ~[xercesImpl-2.12.2.jar:2.12.2]
   	at org.apache.xerces.impl.XMLScanner.scanAttributeValue(Unknown Source) ~[xercesImpl-2.12.2.jar:2.12.2]
   	at org.apache.xerces.impl.XMLNSDocumentScannerImpl.scanAttribute(Unknown Source) ~[xercesImpl-2.12.2.jar:2.12.2]
   	at org.apache.xerces.impl.XMLNSDocumentScannerImpl.scanStartElement(Unknown Source) ~[xercesImpl-2.12.2.jar:2.12.2]
   	at org.apache.xerces.impl.XMLDocumentFragmentScannerImpl$FragmentContentDispatcher.dispatch(Unknown Source) ~[xercesImpl-2.12.2.jar:2.12.2]
   	at org.apache.xerces.impl.XMLDocumentFragmentScannerImpl.scanDocument(Unknown Source) ~[xercesImpl-2.12.2.jar:2.12.2]
   	at org.apache.xerces.parsers.XML11Configuration.parse(Unknown Source) ~[xercesImpl-2.12.2.jar:?]
   	at org.apache.xerces.parsers.XML11Configuration.parse(Unknown Source) ~[xercesImpl-2.12.2.jar:?]
   	at org.apache.xerces.parsers.XMLParser.parse(Unknown Source) ~[xercesImpl-2.12.2.jar:?]
   	at org.apache.xerces.parsers.AbstractSAXParser.parse(Unknown Source) ~[xercesImpl-2.12.2.jar:?]
   	at org.apache.xerces.jaxp.SAXParserImpl$JAXPSAXParser.parse(Unknown Source) ~[xercesImpl-2.12.2.jar:?]
   	at com.sun.xml.bind.v2.runtime.unmarshaller.UnmarshallerImpl.unmarshal0(UnmarshallerImpl.java:258) ~[jaxb-runtime-2.3.1.jar:2.3.1]
   	at com.sun.xml.bind.v2.runtime.unmarshaller.UnmarshallerImpl.unmarshal(UnmarshallerImpl.java:229) ~[jaxb-runtime-2.3.1.jar:2.3.1]
   	at javax.xml.bind.helpers.AbstractUnmarshallerImpl.unmarshal(AbstractUnmarshallerImpl.java:140) ~[?:1.8.0_252]
   	at javax.xml.bind.helpers.AbstractUnmarshallerImpl.unmarshal(AbstractUnmarshallerImpl.java:123) ~[?:1.8.0_252]
   	at com.sun.jersey.core.impl.provider.entity.XMLRootElementProvider.readFrom(XMLRootElementProvider.java:115) ~[?:?]
   	at com.sun.jersey.core.provider.jaxb.AbstractRootElementProvider.readFrom(AbstractRootElementProvider.java:111) ~[?:?]
   	... 235 more

原因

Broken application link

The "Application Link" error could be caused when the application link between JIRA and Bamboo is broken or incorrectly configured. This could be due to changes in the configuration or incorrect login credentials. As a result, Bamboo cannot fetch data from JIRA or link to the appropriate issues.

Invalid character(s)

The error happens because of certain invalid characters in the Jira ticket name. When Bamboo retrieves and processes issue data from Jira through the Application Link, it fails if the data contains any invalid characters. The issue is not limited to the '\b' or '0x8' character; any character that is not a valid XML character can cause this error. Consequently, Bamboo cannot display the associated issue details. For instance, a Jira issue key or title such as "\bTEST-345" will trigger the problem as it includes a non-parseable backspace character ('\b'). Please refer to this link for more information on valid XML characters: https://en.wikipedia.org/wiki/Valid_characters_in_XML.

ソリューション

Broken application link solution:

If the cause is a broken link between Bamboo and Jira:

1. Double-check and reconfigure the application links, you could refer to the documents below for information:
   1. https://confluence.atlassian.com/Bamboo/linking-to-another-application-360677713.html
   2. How to test application link.

Invalid character solution:

If the cause is from the invalid XML character, follow these steps:

• Check <bamboo-home>/logs/atlassian-bamboo.log file for errors like the below:

  Caused by: org.xml.sax.SAXParseException: An invalid XML character (Unicode: 0x8) was found in the value of attribute "name" and element is "entity".

• Query Jira's API endpoints that have the information found in the previous step. For example, in the previous message, we found that the invalid character was found in the value of attribute "name" and element is "entity". So we could use the command below:

  curl -is --raw -k -vvv -H 'Accept: application/json' -u 'admin_user:admin_password' 'https://<your-jira-domain>/rest/applinks/1.0/entities?xoauth_requestor_id=admin_user'

  This command returns a list of all application links that are currently set up in your Jira instance. Each application link represents a connection to another application. Look for a faulty name containing the character "\b":

  • {"entity":[{"key":"ABC","name":"\bXYZ","typeId":"jira.project"}]}

• Go to your Jira instance and locate the attributes with the invalid characters and replace them with valid ones.
